Your fridge isn't cooling properly, and you're worried about spoiled food. It could be a simple, fixable part causing the trouble, not a major disaster.

A bad defrost timer will stop the refrigerator's automatic defrost cycle. This causes thick frost to build up on the evaporator coils, which blocks airflow. As a result, your refrigerator will stop cooling efficiently while the freezer might get excessively cold.

When I first started my own refrigerator factory, we Troubleshooted a lot of issues for our clients. A faulty defrost timer was one of the most common problems, but also one of the easiest to diagnose once you know what to look for. It's a small part, but it has a very important job. If it fails, the whole system can't work as designed. Many business owners like you, Alex, can save a lot of money on service calls by understanding how this simple component works. Let's dig into how you can identify and understand these problems.

How do you know if a defrost timer is bad?

Your fridge is either too warm or freezing over solid. You can't figure out the cause. I will help you pinpoint if the timer is the culprit.

The biggest signs of a bad defrost timer are a thick layer of frost on the back interior wall of the freezer and a refrigerator that is too warm. You might also notice that the compressor seems to be running all the time without ever shutting off.

Based on my experience helping clients, especially those new to sourcing their own appliances, recognizing a bad timer early is key. We can break down the diagnosis into a few simple checks. You don't need to be a factory engineer to do this; you just need to observe your refrigerator.

Three Ways to Test Your Defrost Timer

1. Visual and Audio Check
   The easiest check is to look and listen. Is there a thick sheet of ice on the back panel inside the freezer? This is the most obvious sign. Also, listen to the refrigerator. The compressor should cycle on and off throughout the day. If you notice it running nonstop for more than 24 hours, the timer might be stuck in the "cool" cycle and never switching to defrost.

2. The Manual Advance Test
   Most defrost timers have a small knob or screw you can turn manually. You can use a flathead screwdriver to slowly turn it. You should hear a loud click when it enters the defrost mode. When this happens, the compressor should shut off. To confirm, wait about 30 minutes. The heater should have melted some of the frost. If the compressor shuts off but no melting occurs, you may have a bad defrost heater, not a bad timer.

3. The "Stuck in Defrost" Test
   Sometimes, the timer gets stuck in the defrost mode. In this case, the refrigerator won't be cooling at all because both the compressor and fans are off. If the fridge is silent and warm for many hours, the timer has likely failed in this position.

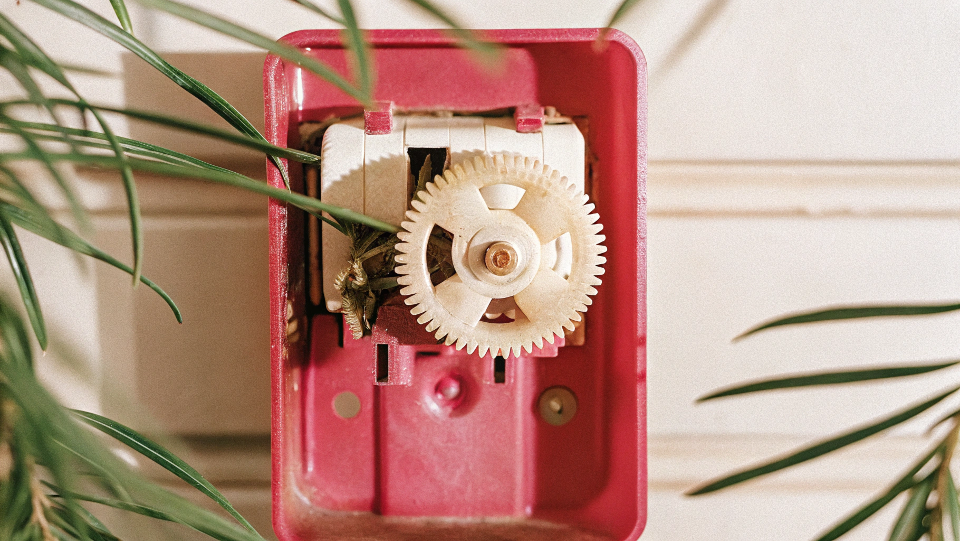

What are the common problems encountered by a defrost timer?

A tiny part is causing major fridge problems. You wonder what can go wrong with it. Understanding the failures helps you prevent them and choose better quality parts.

The most common problems are a burnt-out motor that stops the timer from advancing, or internal contacts that get stuck. This leaves the fridge permanently stuck in either the cooling or defrosting cycle.

In my factory, we source components from various suppliers. I’ve learned that not all defrost timers are created equal. For business owners like Alex who rely on OEM products, specifying a higher-quality timer can prevent a lot of customer complaints down the line. The failures usually come down to two main mechanical issues.

Mechanical and Electrical Failures

The defrost timer is a simple electro-mechanical device. It has a tiny motor and a set of gears that turn cams. These cams open and close electrical contacts, switching power between the cooling system and the defrost system. It's a tough job, and over years of constant use, parts can wear out.

• Motor Burnout: The small motor that powers the timer can simply fail from age or from electrical surges. When the motor dies, the timer stops turning. The refrigerator gets stuck in whatever cycle it was in when the motor failed. If it was the cooling cycle, you get a massive frost buildup.
• Worn or Stuck Contacts: The electrical contacts inside the timer handle the full power of the compressor. Over time, the constant switching can cause sparks that pit and degrade the contacts. They can become so damaged that they either can't make a good connection or get welded together.
• Stripped Gears: Cheaper timers use soft plastic gears. Over years of operation, these gears can wear down or strip, which stops the cams from turning. This is a point of quality I always stress with my clients. A timer with metal gears costs a little more, but it lasts much longer.

How to tell if a fridge needs defrosting?

You see some frost in your freezer. Is it normal or a sign of trouble? Knowing the difference saves you time and prevents bigger problems from developing.

A non-frost-free model needs defrosting when ice is over a quarter-inch thick. For modern frost-free refrigerators, any significant, icy buildup means the automatic defrost system is failing and needs to be repaired.

It’s important to understand the difference between a normal manual-defrost fridge and the modern frost-free models you likely sell, Alex. The term "defrosting" means something very different for each. For your customers with retro-style but modern frost-free fridges, seeing heavy frost is always a red flag that a part, like the timer, has broken.

Manual vs. Frost-Free Models

The advice you give customers depends entirely on the type of refrigerator they have.

• Manual Defrost Refrigerators: These are older, simpler designs. They don't have an automatic defrost system. Frost naturally builds up on the freezer walls over time. The user has to manually turn off the fridge and let the ice melt. A good rule is to do this whenever the ice gets to be about 1/4 inch (or about 6mm) thick.

• Frost-Free Refrigerators: These are what most people have today. They are designed to never need manual defrosting. They have a built-in timer, heater, and thermostat that automatically melt any frost from the hidden evaporator coils every day. If a customer sees frost building up inside their frost-free model, it is not normal. It is a symptom of a problem.

Here's a quick checklist for a frost-free fridge that indicates a defrost system problem:

What happens when a fridge goes into defrost mode?

Your fridge stops humming and makes strange noises sometimes. Is it broken? No, understanding the normal defrost cycle will give you peace of mind and help you spot real issues.

When a fridge enters defrost mode, the compressor and fans shut off. A heater turns on to melt frost from the evaporator coils. Water drips into a pan and evaporates. This quiet process lasts 20-30 minutes and is completely normal.

The defrost cycle is a normal and necessary part of how a modern refrigerator works. At my factory, we have to ensure this cycle functions perfectly on every unit. It runs automatically, usually once or twice a day, so most people never even notice it. Here is the simple sequence of events that happens behind the scenes.

The Automatic Defrost Sequence

1. Timer Starts the Cycle: After the compressor has run for a set amount of time (usually 6 to 10 hours), the defrost timer switches the power.
2. Cooling Stops: The timer cuts power to the compressor and the evaporator fan. This is why the refrigerator suddenly goes quiet.
3. Heating Starts: The timer sends electricity to a defrost heater. This heater looks like a small oven element and is wrapped around the evaporator coils, which are hidden behind a panel in the freezer.
4. Frost Melts: The heater warms up and melts the thin layer of frost that has formed on the coils. This keeps the coils clear so air can flow freely.
5. Water Drains: The melted frost turns into water, which drips down into a collection tube. This tube leads to a shallow drain pan under the refrigerator, where the water simply evaporates from the natural heat of the compressor.
6. Cycle Ends: A small device called a bimetal defrost thermostat senses when the coils have reached a certain temperature (meaning the ice is gone). It then signals the timer to end the defrost cycle and turn the cooling system back on. The whole process is quick and efficient.

Conclusion

A bad defrost timer causes frost to build up and stops your fridge from cooling. But this is a common issue that is simple to diagnose and fix.
